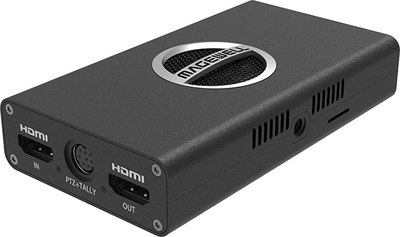

Magewell Pro Convert HDMI 4K Plus

Beschrijving

Magewell Pro Convert HDMI 4K Plus, 4K HDMI to Full NDI Converter, Converts a 4K HDMI input signal to Full NDI, Supports HDMI input up to 4096×2160 4:4:4 60fps, Supports 8-channel IEC60958 audio streams, Supports NDI encoding up to 4096×2160 60fps or 1920×1080 240fps 4:2:2 8-bit, Sends NDI streams across network segments, Remote control of PTZ cameras via NDI, Support for NDI 6.2, Very low latency, Advanced configuration and device status via intuitive web interface, Supports tally signal, HTTP-based APIs for customer-specific integration, Crestron plugins available, Q-SYS control plugins available, Includes 1x Magewell Pro Convert HDMI Plus 4K, 1x power supply and 1x USB 2.0 cable type A to type B@+*Technical specifications:*, Video input: 1 x HDMI, Video output: 1x HDMI loop-through Ethernet: 1x RJ45, 10/100/1000 Mbit/s, Power over ethernet, USB: 1x USB 2.0 Type B (5V/2.1A power supply), PTZ control: Mini DIN 8 socket (shared with tally light), PTZ cameras with VISCA protocols, Visca UDP, Visca UDP2rs232, PELCO-P and PELCO-D via NDI, Protocol: NDI, Resolution: 4096 x 2160 pixels at 60 fps / 1920 x 1080 pixels at 240 fps, Screw connection: 1/4″-20 threaded hole, Power consumption: 5V, Max. current: ~2 A / max. power ~10 W, Dimensions: 117.5 x 66.7 x 23.4 mm
