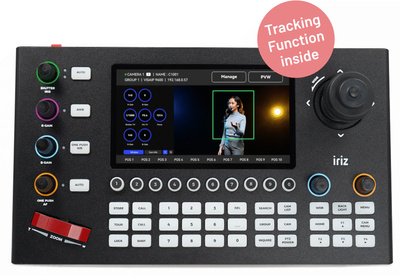

iriz PTC-TN

Beschrijving

iriz PTC-TN, iPTZ Camera Controller, With live image display and automatic tracking, Versatile control via IP, RS-422, RS-485 and RS-232, Integrated 5.5-inch colour screen for direct camera monitoring, Automatic tracking of people – the PTZ camera itself does not require this feature, Tracking is performed by AI software in the controller, Various modes are possible, such as: head / head and shoulders / whole person, as well as person on the left / right / centre of the image – ideal for presentations, e.g. in front of a blackboard., Compatible with common protocols: NDI, VISCA, VISCA-over-IP, Sony VISCA, ONVIF, Pelco P/D, Control of up to 255 cameras via IP, 7 cameras via VISCA directly, Professional 4D joystick for precise pan, tilt and zoom control, Individually adjustable camera movements (cruise function) with memory and quick recall options, TALLY light output (GPIO) to indicate the active camera, Multi-colour LED key display for quick function assignment, Screenshot function with storable image recordings for later analysis, Customisable boot interface for tailor-made application scenarios, Quick IP camera search and automatic protocol configuration@+*Technical specifications:*, Interfaces & protocols: IP (RJ45), RS-232, RS-485/RS-422, Supported protocols: NDI, ONVIF, VISCA-over-IP, VISCA, Pelco-D, Pelco-P, Serial baud rates: 2400 / 4800 / 9600 / 19200 / 38400 bps@+*Display and controls:*, Display: 5-inch colour LCD, Control: 4D joystick for pan, tilt and zoom, Camera shortcut keys: 10 keys, Camera addresses: Control of up to 255 channels, Presets: up to 255 storable presets@+*Power supply:*, Power over Ethernet (PoE) & DC 12V, Power consumption: 5 W (PoE or DC), Dimensions: 283 x 170 x 111 mm, Weight: 0.97 kg@+*Delivery contents:*, Power supply unit suitable for EU sockets, 150 cm cable length, Screwable power connector
