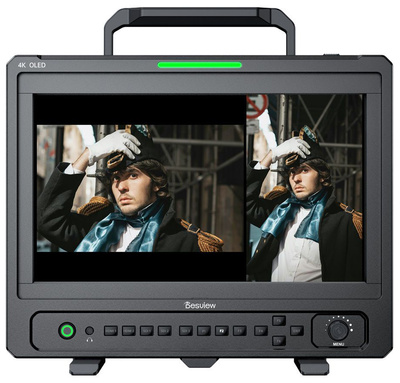

Desview OL14

Beschrijving

Desview OL14, Mobile Production Monitor, With high brightness and colour accuracy, With AMOLED technology and 4K resolution, Supports multi-view monitoring – horizontal and vertical layouts, Numerous image analysis tools, Robust housing, Removable sun visor – protects the display when folded down, Fold-out, non-slip feet, Fold-out carrying handle, 5 x 1/4″ internal thread on the top for mounting accessories, One 1/4″ and one 3/8″ internal thread on each side for rack mounting, 2 x internal threads on the underside for mounting on a tripod (via optional 1/4‘ or 3/8’ adapter), Vessa mount on the back, Power button on the front, Image analysis and display: Multi-screen, Picture-in-Picture mode, False Colour, Zebra, Histogram, Waveform, Vectorscope, Peak Focus, Monochrome Display, Colour Settings, Aspect Ratio Display, Centre Marker, Safety Frame, Composition Assistant, Includes sun visor, cone tripod mount (for Vesa mount) and power supply unit@+*Connections:*, 2 x HDMI input (supports up to 4Kp60), HDMI Loop output, 3 x 3G-SDI input (supports up to 1080p60), 3 x SDI loop output, 3.5 mm stereo audio output, USB Type-A (for firmware updates), RJ4 socket for tally light@+*Technical specifications:*, Display size: 13.3″, Resolution: 3840 x 2400, Aspect ratio: 16:9, Brightness: 1500 Nits, Contrast ratio: 500.000:1, Viewing angle: 178° (horizontal and vertical), Colour spectrum: 100 % DCI-P3, Colour depth: 10 bits, Power supply via 7–26 V DC power supply unit, XLR (7–26 V) or V-mount batteries (not included), Power consumption: 26 W, Weight: 4 kg
