CVW Crystal Video Spectra Set (1x TX, 2x RX)

Beschrijving

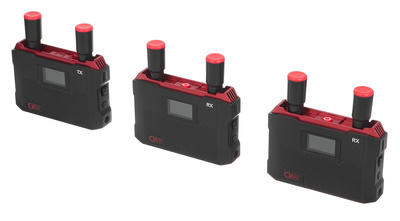

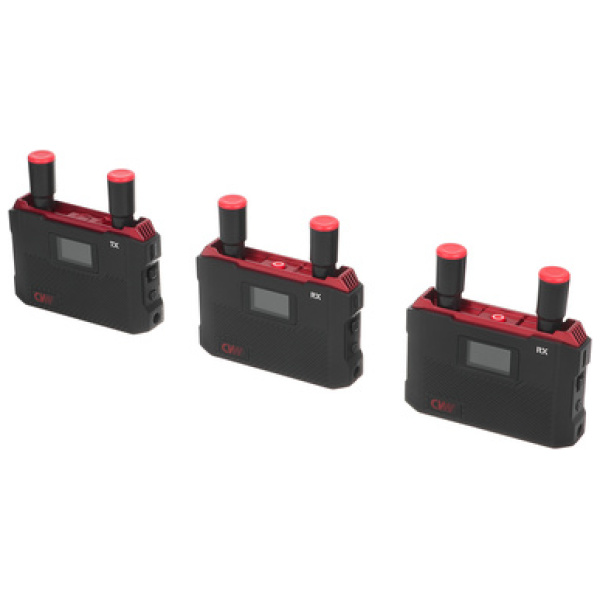

CVW Crystal Video Spectra Set (1x TX, 2x RX)

CVW Crystal Video Spectra Set (1x TX, 2x RX), Video Radio Link for HDMI Cameras, Consists of one transmitter and two receivers, HDMI connections, USB-C port, Range with visual contact: up to 350 m, Low latency below 80 ms (under ideal local conditions), DFS function (for outdoor use), Supports recording and playback, Frequency range (EU): 5.1 – 5.9 GHz, Video in Full HD 1080/60, Frequency selection: manual with buttons (control via LED display), Channel scanning (channels with critical signal strength are marked in red), Video codec: H.265, Audio format: PCM, Expandable with second receiver, Video-Formats: 1080p (60 / 59.94 / 50 / 30 / 29,97 / 25 / 24 / 23,98 fps), 720p (60 / 59.94 / 50 fps), PC-Monitor resolutions: 1920×1080, 1366×768, 1280×768, 1280×720, 1024×768, Illuminated screen display: active channel highlighted, signal strength, battery status, video resolution, Power consumption: 3.5 W transmitter / 2.5 W receiver, Power supply via UBS-C, DC power supply or NP-F battery mount (power supply and battery not included), Dimensions: 100 x 65 x 22 mm (without antennas), 100 x 95 x 22 mm (with antennas), Weight: 208 g each, Incldues 1 transmitter with 2 antennas and 2 receivers with 2 antennas each@+*Transmitter connections:*, 1 HDMI 1.4 input, 1 HDMI 1.4 loop-out, 1 USB-C (Power, 5 V / 2 A), 1 DC in 6 V – 30 V, 2 Antenna ports@+*Receiver connections:*, 1 HDMI 1.4 output, 1 USB-C (Power, 5 V / 2 A), 1 USB-C (UVC output, can be connected directly to a notebook to integrate the video into a live stream), TF card (Micro SD) slot, 1 DC in 6 V – 30 V, 2 Antenna ports
