Blackmagic Design ATEM Micro Panel

Beschrijving

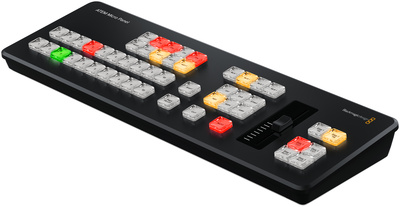

Blackmagic Design ATEM Micro Panel, Video Mixer, Control console for manual mixing for parallel use with ATEM Software Control, Design is similar to that of ATEM Advanced Panels, Features high-quality backlit buttons and a low-profile manual transition fader, Two rows of ten buttons each for programme and preview, plus a shift button to access up to 20 sources, Buttons for upstream and downstream keyers, Transitions, transition preview and macros, The four M/E buttons allow you to control even the largest mixers with this console, Connects to a computer with ATEM software control via USB-C or wirelessly via Bluetooth@+*Technical data:*, Number of mix/effect lines: 1, Direct crosspoints: 10, Offset crosspoints: 20, Crosspoint button type: 3-colour LED display, Transition preview: 1, Mixing buttons: Cut, Auto, Transition type buttons: DIP, DVE, STINGER, MIX, WIPE, M/E selection buttons: 4, Upstream keyer buttons: 4 with on/off, Buttons for downstream keyer: 2 with on/off, Fader for transitions: 1, Software applications: ATEM Micro Panel controls the ATEM Software Control operating software on a host computer (host computer not included), Compatible operating systems: Mac 13.0 Ventura, Mac 14.0 Sonoma or later / Windows 10 and 11, Power supply: Internal rechargeable battery with on/off switch, USB-C port for external power supply and battery charging, Power consumption: max. 3 W, Battery operating time: approx. 6 h (with normal use), Dimensions: 410 x 41 x 136 mm, Weight: 1.05 kg
